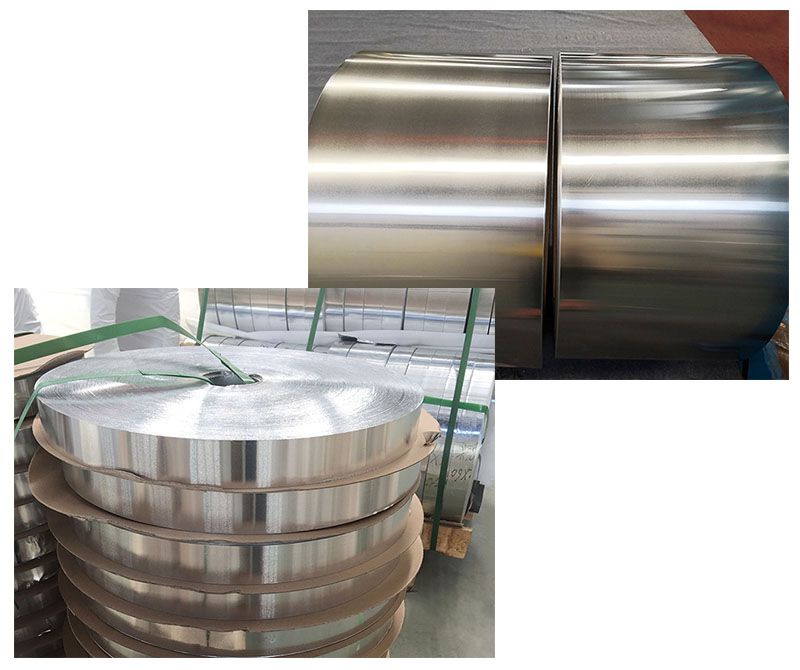

1350 Aluminum Strip for Transformer

What is 1350 aluminum strip for transformer

1350 aluminum strip, a core material for transformer windings, has an aluminum content of ≥99.5% and is supplied in the O temper (fully annealed). Its key characteristics include a conductivity ≥62.0% IACS and a resistivity ≤0.02825Ω・mm²/m, ensuring efficient and stable current transmission in transformers and meeting the winding requirements of both oil-immersed and dry-type transformers.

Its tensile strength is 60-95 N/mm², and its elongation is ≥25% (thickness 0.2-3.0 mm). It possesses excellent formability and flexibility, easily wound into coils of various specifications without cracking. Its smooth, burr-free edges prevent damage to insulation materials and reduce the risk of winding breakdown.

Furthermore, it exhibits good corrosion resistance and thermal stability, maintaining excellent performance at temperatures ≤130℃, effectively extending transformer lifespan. Its impurity content is strictly controlled and complies with international electrical standards, making it a transformer-specific conductive material that balances performance and economy.

1350 aluminium chemical composition

1350 aluminum strip specification

1350 aluminium properties

Conductivity: ≥62.0% IACS, low loss, high energy efficiency.

Resistivity : ≤0.02825 Ω·mm²/m, reducing winding heat generation.

Continuous operation at ≤130℃, stable electrical performance.

O-temper, elongation ≥25%, good flexibility, easy to wind

Tensile strength 60-95 N/mm², moderate strength, easy to process

Burr-free edges (≤0.03-0.05mm), protecting the insulation layer.

High purity (Al≥99.50%), corrosion and oxidation resistant, long service life

Smooth surface, improving winding tightness and heat dissipation efficiency.

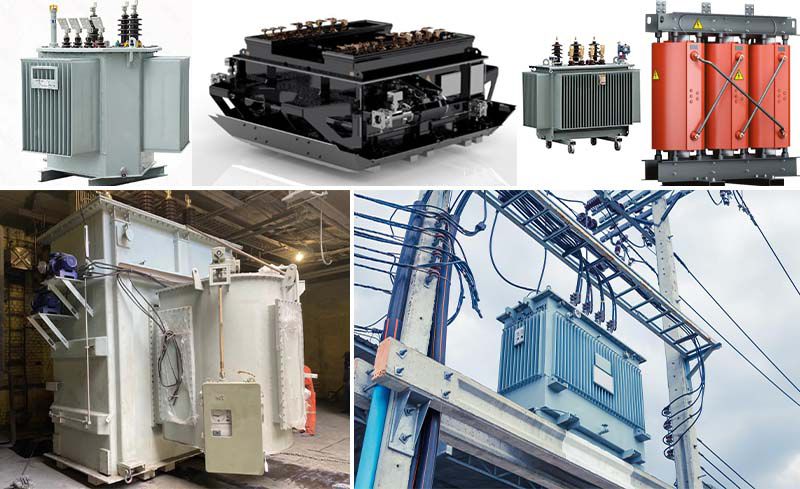

1350 aluminum strip uses

• Oil-immersed power transformers

• Dry-type transformers

• Distribution transformers

• Traction transformers

• Rectifier transformers

• Electric furnace transformers

• Wind/solar inverter transformers

• Charging pile transformers

• High-frequency transformers

• Motor/generator stators

1350 VS Other 1000 aluminum strips

Chemical composition: 1350 has an aluminum content ≥99.5%, with a balanced impurity (Si/Fe/Cu) ratio, emphasizing electrical stability; 1050 has the same aluminum content but without impurity optimization; 1060 (≥99.6%) and 1070 (≥99.7%) have higher purity and fewer impurities.

Electrical conductivity: 1070 is the best (≥62.7% IACS), followed by 1350 (≥62.0% IACS, stronger stability), 1060 (≥61.5% IACS), and 1050 is the worst (≥60.0% IACS).

Mechanical properties: 1350 has better fatigue strength and durability, with a service life 15%-20% longer than 1050/1060; the tensile strength and elongation of all four are basically the same.

Application scenarios: 1350 aluminum strip is suitable for ≥110kV ultra-high voltage/high power transformers; 1050 alloy is suitable for ≤35kV medium and low voltage economic scenarios; 1060 strip is a general type (35-110kV); 1070 is suitable for high frequency/high-requirement high power transformers.

Packaging &Shipping

1350 aluminum strip packaging is moisture-proof, rust-proof, and impact-resistant, while meeting export fumigation and environmental protection requirements. All packaging materials meet recyclable and biodegradable standards, and materials in direct contact with the aluminum strip are water-soluble and neutral or weakly acidic, ensuring no impact on the electrical properties and surface quality of the aluminum strip.

We can arrange sea, land, or air freight according to customer needs and requirements. Haomei provides full control over the packaging and transportation process, confirming the import policies of the destination country in advance (such as packaging materials and quarantine requirements). After the goods arrive at the port, we assist buyers with customs clearance and answer any questions to ensure smooth receipt of goods.
